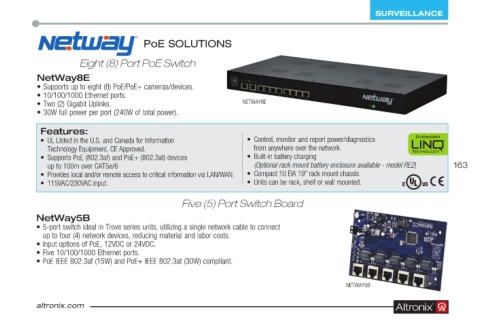

Page 163 - Altronix Product Guide

SURVEILLANCE

®
PoE SOLUTIONS
Eight (8) Port PoE Switch
NetWay8E
• Supports up to eight (8) PoE/PoE+ cameras/devices .
• 10/100/1000 Ethernet ports .
• Two (2) Gigabit Uplinks . NETWAY8E
• 30W full power per port (240W of total power) .

Features:
• UL Listed in the U .S . and Canada for Information • Control, monitor and report power/diagnostics Embedded ™
Technology Equipment, CE Approved . from anywhere over the network .
• Supports PoE (802 .3af) and PoE+ (802 .3at) devices • Built-in battery charging
up to 100m over CAT5e/6 (Optional rack mount battery enclosure available - model RE2) 163
• Provides local and/or remote access to critical information via LAN/WAN . • Compact 1U EIA 19” rack mount chassis
• 115VAC/230VAC input . • Units can be rack, shelf or wall mounted .
Five (5) Port Switch Board
NetWay5B
• 5-port switch ideal in Trove series units, utilizing a single network cable to connect
up to four (4) network devices, reducing material and labor costs .
• Input options of PoE, 12VDC or 24VDC .
• Five 10/100/1000 Ethernet ports .
• PoE IEEE 802 .3af (15W) and PoE+ IEEE 802 .3at (30W) compliant .

NETWAY5B
altronix.com ®
