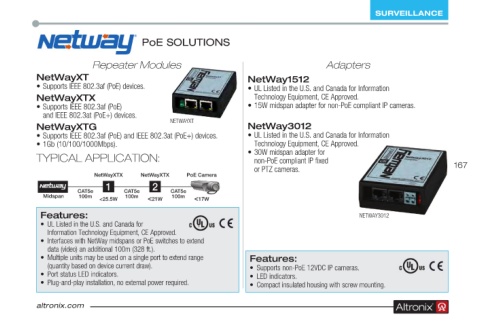

Page 167 - Altronix Product Guide

SURVEILLANCE

®
PoE SOLUTIONS
Repeater Modules Adapters
NetWayXT NetWay1512
• Supports IEEE 802 .3af (PoE) devices . • UL Listed in the U .S . and Canada for Information
NetWayXTX Technology Equipment, CE Approved .
• Supports IEEE 802 .3af (PoE) • 15W midspan adapter for non-PoE compliant IP cameras .
and IEEE 802 .3at (PoE+) devices . NETWAYXT
NetWayXTG NetWay3012
• Supports IEEE 802 .3af (PoE) and IEEE 802 .3at (PoE+) devices . • UL Listed in the U .S . and Canada for Information
• 1Gb (10/100/1000Mbps) . Technology Equipment, CE Approved .
TYPICAL APPLICATION: • 30W midspan adapter for
non-PoE compliant IP fixed
or PTZ cameras . 167
NetWayXTX NetWayXTX PoE Camera
1 2
CAT5e CAT5e CAT5e
Midspan 100m 100m 100m
<25.5W <21W <17W
Features: NETWAY3012
• UL Listed in the U .S . and Canada for
Information Technology Equipment, CE Approved .
• Interfaces with NetWay midspans or PoE switches to extend
data (video) an additional 100m (328 ft .) .
• Multiple units may be used on a single port to extend range Features:
(quantity based on device current draw) . • Supports non-PoE 12VDC IP cameras .
• Port status LED indicators . • LED indicators .
• Plug-and-play installation, no external power required . • Compact insulated housing with screw mounting .
