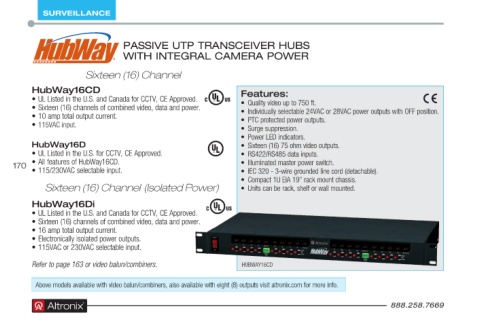

Page 170 - Altronix Product Guide

SURVEILLANCE

PASSIVE UTP TRANSCEIVER HUBS
WITH INTEGRAL CAMERA POWER
Sixteen (16) Channel
HubWay16CD Features:
• UL Listed in the U .S . and Canada for CCTV, CE Approved . • Quality video up to 750 ft .
• Sixteen (16) channels of combined video, data and power . • Individually selectable 24VAC or 28VAC power outputs with OFF position .
• 10 amp total output current . • PTC protected power outputs .
• 115VAC input .
• Surge suppression .
• Power LED indicators .
HubWay16D • Sixteen (16) 75 ohm video outputs .
• UL Listed in the U .S . for CCTV, CE Approved . • RS422/RS485 data inputs .
• All features of HubWay16CD . • Illuminated master power switch .
170
• 115/230VAC selectable input . • IEC 320 - 3-wire grounded line cord (detachable) .
• Compact 1U EIA 19” rack mount chassis .
Sixteen (16) Channel (Isolated Power) • Units can be rack, shelf or wall mounted .
HubWay16Di
• UL Listed in the U .S . and Canada for CCTV, CE Approved .
• Sixteen (16) channels of combined video, data and power .
• 16 amp total output current .
• Electronically isolated power outputs .
• 115VAC or 230VAC selectable input .
Refer to page 163 or video balun/combiners. HUBWAY16CD

Above models available with video balun/combiners, also available with eight (8) outputs visit altronix .com for more info .
