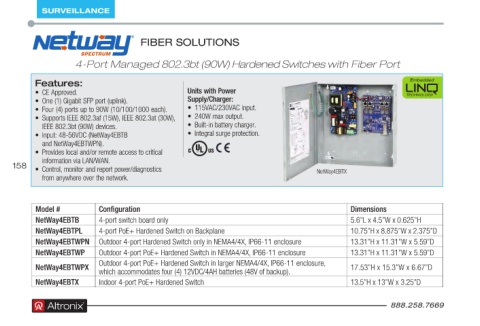

Page 158 - Altronix Product Guide

SURVEILLANCE

FIBER SOLUTIONS

4-Port Managed 802.3bt (90W) Hardened Switches with Fiber Port

Features: Embedded ™
• CE Approved . Units with Power
• One (1) Gigabit SFP port (uplink) . Supply/Charger:
• Four (4) ports up to 90W (10/100/1000 each) . • 115VAC/230VAC input .
• Supports IEEE 802 .3af (15W), IEEE 802 .3at (30W), • 240W max output .
IEEE 802 .3bt (90W) devices . • Built-in battery charger .
• Input: 48-56VDC (NetWay4EBTB • Integral surge protection .
and NetWay4EBTWPN) .
• Provides local and/or remote access to critical
information via LAN/WAN .
158
• Control, monitor and report power/diagnostics NetWay4EBTX
from anywhere over the network .

Model # Configuration Dimensions
NetWay4EBTB 4-port switch board only 5 .6”L x 4 .5”W x 0 .625”H
NetWay4EBTPL 4-port PoE+ Hardened Switch on Backplane 10 .75”H x 8 .875”W x 2 .375”D
NetWay4EBTWPN Outdoor 4-port Hardened Switch only in NEMA4/4X, IP66-11 enclosure 13 .31”H x 11 .31”W x 5 .59”D
NetWay4EBTWP Outdoor 4-port PoE+ Hardened Switch in NEMA4/4X, IP66-11 enclosure 13 .31”H x 11 .31”W x 5 .59”D
Outdoor 4-port PoE+ Hardened Switch in larger NEMA4/4X, IP66-11 enclosure,
NetWay4EBTWPX which accommodates four (4) 12VDC/4AH batteries (48V of backup) . 17 .53”H x 15 .3”W x 6 .67”D
NetWay4EBTX Indoor 4-port PoE+ Hardened Switch 13 .5”H x 13”W x 3 .25”D
