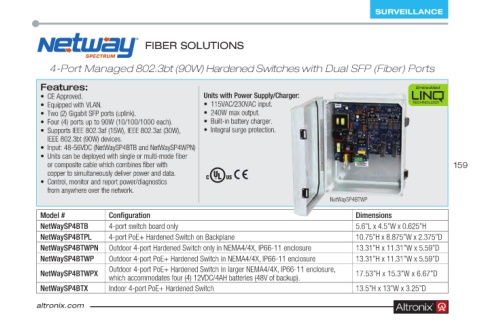

Page 159 - Altronix Product Guide

SURVEILLANCE

FIBER SOLUTIONS

4-Port Managed 802.3bt (90W) Hardened Switches with Dual SFP (Fiber) Ports
Features: Embedded
• CE Approved . Units with Power Supply/Charger: ™
• Equipped with VLAN . • 115VAC/230VAC input .
• Two (2) Gigabit SFP ports (uplink) . • 240W max output .
• Four (4) ports up to 90W (10/100/1000 each) . • Built-in battery charger .
• Supports IEEE 802 .3af (15W), IEEE 802 .3at (30W), • Integral surge protection .
IEEE 802 .3bt (90W) devices .
• Input: 48-56VDC (NetWaySP4BTB and NetWaySP4WPN)
• Units can be deployed with single or multi-mode fiber
or composite cable which combines fiber with 159
copper to simultaneously deliver power and data .
• Control, monitor and report power/diagnostics
from anywhere over the network .
NetWaySP4BTWP
Model # Configuration Dimensions
NetWaySP4BTB 4-port switch board only 5 .6”L x 4 .5”W x 0 .625”H
NetWaySP4BTPL 4-port PoE+ Hardened Switch on Backplane 10 .75”H x 8 .875”W x 2 .375”D
NetWaySP4BTWPN Outdoor 4-port Hardened Switch only in NEMA4/4X, IP66-11 enclosure 13 .31”H x 11 .31”W x 5 .59”D
NetWaySP4BTWP Outdoor 4-port PoE+ Hardened Switch in NEMA4/4X, IP66-11 enclosure 13 .31”H x 11 .31”W x 5 .59”D
Outdoor 4-port PoE+ Hardened Switch in larger NEMA4/4X, IP66-11 enclosure,
NetWaySP4BTWPX 17 .53”H x 15 .3”W x 6 .67”D
which accommodates four (4) 12VDC/4AH batteries (48V of backup) .
NetWaySP4BTX Indoor 4-port PoE+ Hardened Switch 13 .5”H x 13”W x 3 .25”D
