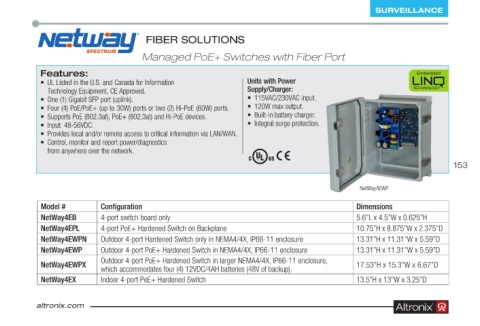

Page 153 - Altronix Product Guide

SURVEILLANCE

FIBER SOLUTIONS
Managed PoE+ Switches with Fiber Port
Features: Embedded ™
• UL Listed in the U .S . and Canada for Information Units with Power
Technology Equipment, CE Approved . Supply/Charger:
• One (1) Gigabit SFP port (uplink) . • 115VAC/230VAC input .
• Four (4) PoE/PoE+ (up to 30W) ports or two (2) Hi-PoE (60W) ports . • 120W max output .
• Supports PoE (802 .3af), PoE+ (802 .3at) and Hi-PoE devices . • Built-in battery charger .
• Input: 48-56VDC . • Integral surge protection .
• Provides local and/or remote access to critical information via LAN/WAN .
• Control, monitor and report power/diagnostics
from anywhere over the network .
153

NetWay4EWP
Model # Configuration Dimensions
NetWay4EB 4-port switch board only 5 .6”L x 4 .5”W x 0 .625”H
NetWay4EPL 4-port PoE+ Hardened Switch on Backplane 10 .75”H x 8 .875”W x 2 .375”D
NetWay4EWPN Outdoor 4-port Hardened Switch only in NEMA4/4X, IP66-11 enclosure 13 .31”H x 11 .31”W x 5 .59”D
NetWay4EWP Outdoor 4-port PoE+ Hardened Switch in NEMA4/4X, IP66-11 enclosure 13 .31”H x 11 .31”W x 5 .59”D
NetWay4EWPX Outdoor 4-port PoE+ Hardened Switch in larger NEMA4/4X, IP66-11 enclosure, 17 .53”H x 15 .3”W x 6 .67”D
which accommodates four (4) 12VDC/4AH batteries (48V of backup) .
NetWay4EX Indoor 4-port PoE+ Hardened Switch 13 .5”H x 13”W x 3 .25”D
