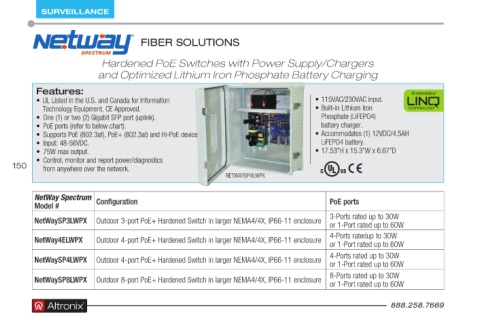

Page 150 - Altronix Product Guide

SURVEILLANCE

FIBER SOLUTIONS

Hardened PoE Switches with Power Supply/Chargers
and Optimized Lithium Iron Phosphate Battery Charging

Features: Embedded
• UL Listed in the U .S . and Canada for Information • 115VAC/230VAC input . ™
Technology Equipment, CE Approved . • Built-in Lithium Iron
• One (1) or two (2) Gigabit SFP port (uplink) . Phosphate (LiFEPO4)
• PoE ports (refer to below chart) . battery charger .
• Supports PoE (802 .3af), PoE+ (802 .3at) and Hi-PoE devices . • Accommodates (1) 12VDC/4 .5AH
• Input: 48-56VDC . LiFEPO4 battery .
• 75W max output . • 17 .53”H x 15 .3”W x 6 .67”D
• Control, monitor and report power/diagnostics
150 from anywhere over the network .
NETWAYSP4LWPX

NetWay Spectrum
Model # Configuration PoE ports
3-Ports rated up to 30W
NetWaySP3LWPX Outdoor 3-port PoE+ Hardened Switch in larger NEMA4/4X, IP66-11 enclosure
or 1-Port rated up to 60W
4-Ports ratedup to 30W
NetWay4ELWPX Outdoor 4-port PoE+ Hardened Switch in larger NEMA4/4X, IP66-11 enclosure
or 1-Port rated up to 60W
4-Ports rated up to 30W
NetWaySP4LWPX Outdoor 4-port PoE+ Hardened Switch in larger NEMA4/4X, IP66-11 enclosure
or 1-Port rated up to 60W
NetWaySP8LWPX Outdoor 8-port PoE+ Hardened Switch in larger NEMA4/4X, IP66-11 enclosure 8-Ports rated up to 30W
or 1-Port rated up to 60W
888.258.7669
®
