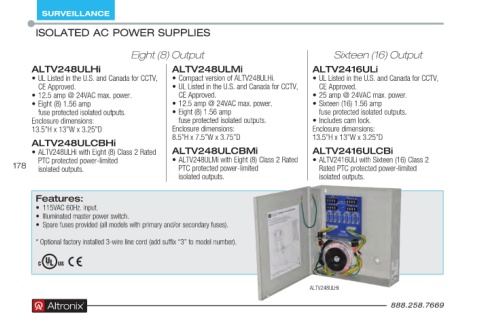

Page 178 - Altronix Product Guide

SURVEILLANCE
ISOLATED AC POWER SUPPLIES

Eight (8) Output Sixteen (16) Output
ALTV248ULHi ALTV248ULMi ALTV2416ULi
• UL Listed in the U .S . and Canada for CCTV, • Compact version of ALTV248ULHi . • UL Listed in the U .S . and Canada for CCTV,
CE Approved . • UL Listed in the U .S . and Canada for CCTV, CE Approved .
• 12 .5 amp @ 24VAC max . power . CE Approved . • 25 amp @ 24VAC max . power .
• Eight (8) 1 .56 amp • 12 .5 amp @ 24VAC max . power . • Sixteen (16) 1 .56 amp
fuse protected isolated outputs . • Eight (8) 1 .56 amp fuse protected isolated outputs .
Enclosure dimensions: fuse protected isolated outputs . • Includes cam lock .
13 .5”H x 13”W x 3 .25”D Enclosure dimensions: Enclosure dimensions:
8 . 5”H x 7 .5”W x 3 .75”D 13 .5”H x 13”W x 3 .25”D
ALTV248ULCBHi
• ALTV248ULHi with Eight (8) Class 2 Rated ALTV248ULCBMi ALTV2416ULCBi
PTC protected power-limited • ALTV248ULMi with Eight (8) Class 2 Rated • ALTV2416ULi with Sixteen (16) Class 2
178 isolated outputs . PTC protected power-limited Rated PTC protected power-limited
isolated outputs . isolated outputs .
Features:
• 115VAC 60Hz . input .
• Illuminated master power switch .
• Spare fuses provided (all models with primary and/or secondary fuses) .

* Optional factory installed 3-wire line cord (add suffix “3” to model number) .

ALTV248ULHi
