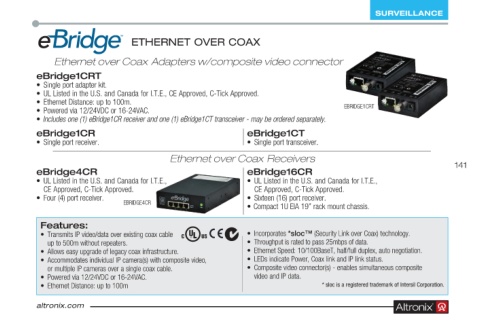

Page 141 - Altronix Product Guide

SURVEILLANCE

ETHERNET OVER COAX

Ethernet over Coax Adapters w/composite video connector
eBridge1CRT
• Single port adapter kit .
• UL Listed in the U .S . and Canada for I .T .E ., CE Approved, C-Tick Approved .
• Ethernet Distance: up to 100m . EBRIDGE1CRT
• Powered via 12/24VDC or 16-24VAC .
• Includes one (1) eBridge1CR receiver and one (1) eBridge1CT transceiver - may be ordered separately.
eBridge1CR eBridge1CT
• Single port receiver . • Single port transceiver .
Ethernet over Coax Receivers
eBridge4CR eBridge16CR 141
• UL Listed in the U .S . and Canada for I .T .E ., • UL Listed in the U .S . and Canada for I .T .E .,
CE Approved, C-Tick Approved . CE Approved, C-Tick Approved .
• Four (4) port receiver . • Sixteen (16) port receiver .
EBRIDGE4CR
• Compact 1U EIA 19” rack mount chassis .
Features:
• Transmits IP video/data over existing coax cable • Incorporates *sloc™ (Security Link over Coax) technology .
up to 500m without repeaters . • Throughput is rated to pass 25mbps of data .
• Allows easy upgrade of legacy coax infrastructure . • Ethernet Speed: 10/100BaseT, half/full duplex, auto negotiation .
• Accommodates individual IP camera(s) with composite video, • LEDs indicate Power, Coax link and IP link status .
or multiple IP cameras over a single coax cable . • Composite video connector(s) - enables simultaneous composite
• Powered via 12/24VDC or 16-24VAC . video and IP data .
• Ethernet Distance: up to 100m * sloc is a registered trademark of Intersil Corporation.
