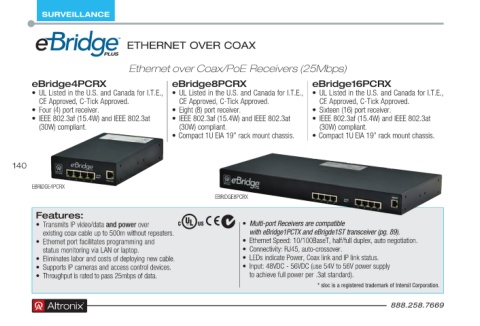

Page 140 - Altronix Product Guide

SURVEILLANCE

ETHERNET OVER COAX

Ethernet over Coax/PoE Receivers (25Mbps)
eBridge4PCRX eBridge8PCRX eBridge16PCRX
• UL Listed in the U .S . and Canada for I .T .E ., • UL Listed in the U .S . and Canada for I .T .E ., • UL Listed in the U .S . and Canada for I .T .E .,
CE Approved, C-Tick Approved . CE Approved, C-Tick Approved . CE Approved, C-Tick Approved .
• Four (4) port receiver . • Eight (8) port receiver . • Sixteen (16) port receiver .
• IEEE 802 .3af (15 .4W) and IEEE 802 .3at • IEEE 802 .3af (15 .4W) and IEEE 802 .3at • IEEE 802 .3af (15 .4W) and IEEE 802 .3at
(30W) compliant . (30W) compliant . (30W) compliant .
• Compact 1U EIA 19” rack mount chassis . • Compact 1U EIA 19” rack mount chassis .

140

EBRIDGE4PCRX
EBRIDGE8PCRX
Features:
• Transmits IP video/data and power over • Multi-port Receivers are compatible
existing coax cable up to 500m without repeaters . with eBridge1PCTX and eBrigde1ST transceiver (pg. 89).
• Ethernet port facilitates programming and • Ethernet Speed: 10/100BaseT, half/full duplex, auto negotiation .
status monitoring via LAN or laptop . • Connectivity: RJ45, auto-crossover .
• Eliminates labor and costs of deploying new cable . • LEDs indicate Power, Coax link and IP link status .
• Supports IP cameras and access control devices . • Input: 48VDC - 56VDC (use 54V to 56V power supply
• Throughput is rated to pass 25mbps of data . to achieve full power per .3at standard) .
* sloc is a registered trademark of Intersil Corporation.
