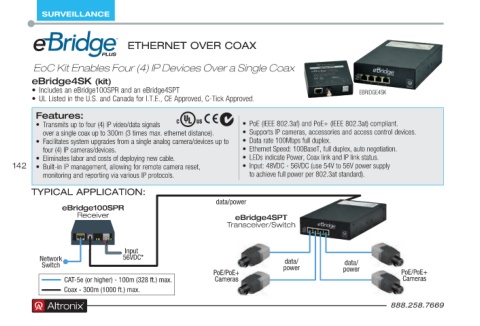

Page 142 - Altronix Product Guide

SURVEILLANCE

ETHERNET OVER COAX

EoC Kit Enables Four (4) IP Devices Over a Single Coax
eBridge4SK (kit)
• Includes an eBridge100SPR and an eBridge4SPT EBRIDGE4SK
• UL Listed in the U .S . and Canada for I .T .E ., CE Approved, C-Tick Approved .
Features:
• Transmits up to four (4) IP video/data signals • PoE (IEEE 802 .3af) and PoE+ (IEEE 802 .3at) compliant .
over a single coax up to 300m (3 times max . ethernet distance) . • Supports IP cameras, accessories and access control devices .
• Facilitates system upgrades from a single analog camera/devices up to • Data rate 100Mbps full duplex .
four (4) IP cameras/devices . • Ethernet Speed: 100BaseT, full duplex, auto negotiation .
• Eliminates labor and costs of deploying new cable . • LEDs indicate Power, Coax link and IP link status .
142 • Built-in IP management, allowing for remote camera reset, • Input: 48VDC - 56VDC (use 54V to 56V power supply
monitoring and reporting via various IP protocols . to achieve full power per 802 .3at standard) .
TYPICAL APPLICATION:
data/power
eBridge100SPR
Receiver eBridge4SPT
Transceiver/Switch

Input
Network 56VDC* data/
data/
Switch power power
PoE/PoE+ + P PoE/PoE+
C
CAT-5e (or higher) - 100m (328 ft.) max. Cameras s Cameras
Coax - 300m (1000 ft.) max.
