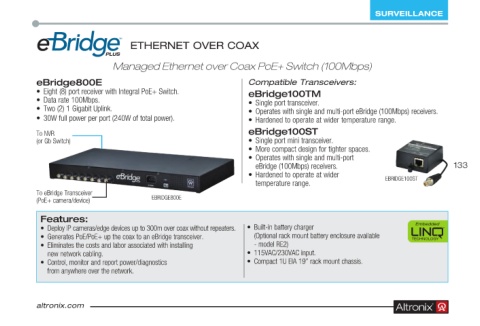

Page 133 - Altronix Product Guide

SURVEILLANCE

ETHERNET OVER COAX

Managed Ethernet over Coax PoE+ Switch (100Mbps)
eBridge800E Compatible Transceivers:
• Eight (8) port receiver with Integral PoE+ Switch . eBridge100TM
• Data rate 100Mbps . • Single port transceiver .
• Two (2) 1 Gigabit Uplink . • Operates with single and multi-port eBridge (100Mbps) receivers .
• 30W full power per port (240W of total power) . • Hardened to operate at wider temperature range .
To NVR eBridge100ST
(or Gb Switch) • Single port mini transceiver .
• More compact design for tighter spaces .
• Operates with single and multi-port
eBridge (100Mbps) receivers . 133
• Hardened to operate at wider EBRIDGE100ST
temperature range .
To eBridge Transceiver EBRIDGE800E
(PoE+ camera/device)
Features:
• Deploy IP cameras/edge devices up to 300m over coax without repeaters . • Built-in battery charger Embedded ™
• Generates PoE/PoE+ up the coax to an eBridge transceiver . (Optional rack mount battery enclosure available
• Eliminates the costs and labor associated with installing - model RE2)
new network cabling . • 115VAC/230VAC input .
• Control, monitor and report power/diagnostics • Compact 1U EIA 19” rack mount chassis .
from anywhere over the network .
