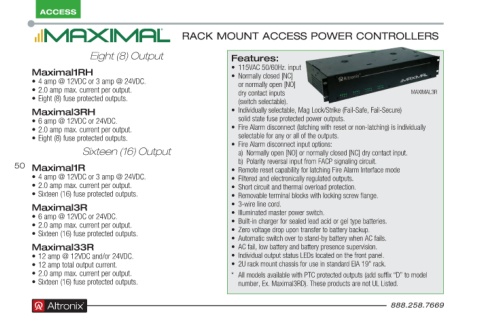

Page 50 - Altronix Product Guide
P. 50

ACCESS

                                     RACK MOUNT ACCESS POWER CONTROLLERS
                         Eight (8) Output      Features:
                                               •  115VAC 50/60Hz . input
       Maximal1RH                              •  Normally closed [NC]
       • 4 amp @ 12VDC or 3 amp @ 24VDC .        or normally open [NO]
       • 2 .0 amp max . current per output .     dry contact inputs                MAXIMAL3R
       • Eight (8) fuse protected outputs .      (switch selectable) .
       Maximal3RH                              •  Individually selectable, Mag Lock/Strike (Fail-Safe, Fail-Secure)
       • 6 amp @ 12VDC or 24VDC .                solid state fuse protected power outputs .
       • 2 .0 amp max . current per output .   •  Fire Alarm disconnect (latching with reset or non-latching) is individually
       • Eight (8) fuse protected outputs .      selectable for any or all of the outputs .
                                               •  Fire Alarm disconnect input options:
                 Sixteen (16) Output             a)  Normally open [NO] or normally closed [NC] dry contact input .
                                                 b)  Polarity reversal input from FACP signaling circuit .
    50  Maximal1R                              •  Remote reset capability for latching Fire Alarm Interface mode
       • 4 amp @ 12VDC or 3 amp @ 24VDC .      •  Filtered and electronically regulated outputs .
       • 2 .0 amp max . current per output .   •  Short circuit and thermal overload protection .
       • Sixteen (16) fuse protected outputs .  •  Removable terminal blocks with locking screw flange .
       Maximal3R                               •  3-wire line cord .
       • 6 amp @ 12VDC or 24VDC .              •  Illuminated master power switch .
                                               •  Built-in charger for sealed lead acid or gel type batteries .
       • 2 .0 amp max . current per output .
       • Sixteen (16) fuse protected outputs .  •  Zero voltage drop upon transfer to battery backup .
                                               •  Automatic switch over to stand-by battery when AC fails .
       Maximal33R                              •  AC fail, low battery and battery presence supervision .
       • 12 amp @ 12VDC and/or 24VDC .         •  Individual output status LEDs located on the front panel .
       • 12 amp total output current .         •  2U rack mount chassis for use in standard EIA 19” rack .
       • 2 .0 amp max . current per output .   *  All models available with PTC protected outputs (add suffix “D” to model
       • Sixteen (16) fuse protected outputs .    number, Ex . Maximal3RD) . These products are not UL Listed .
