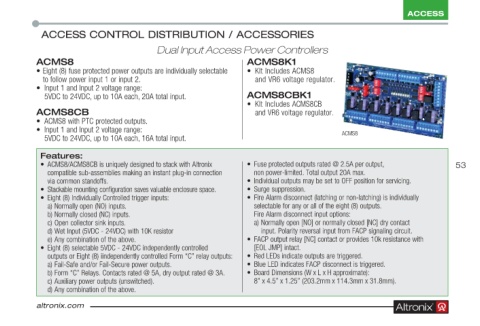

Page 53 - Altronix Product Guide

ACCESS

ACCESS CONTROL DISTRIBUTION / ACCESSORIES
Dual Input Access Power Controllers
ACMS8 ACMS8K1
• Eight (8) fuse protected power outputs are individually selectable • KIt Includes ACMS8
to follow power input 1 or input 2 . and VR6 voltage regulator .
• Input 1 and Input 2 voltage range:
5VDC to 24VDC, up to 10A each, 20A total input . ACMS8CBK1
• KIt Includes ACMS8CB
ACMS8CB and VR6 voltage regulator .
• ACMS8 with PTC protected outputs .
• Input 1 and Input 2 voltage range: ACMS8
5VDC to 24VDC, up to 10A each, 16A total input .
Features:
• ACMS8/ACMS8CB is uniquely designed to stack with Altronix • Fuse protected outputs rated @ 2 .5A per output, 53
compatible sub-assemblies making an instant plug-in connection non power-limited . Total output 20A max .
via common standoffs . • Individual outputs may be set to OFF position for servicing .
• Stackable mounting configuration saves valuable enclosure space . • Surge suppression .
• Eight (8) Individually Controlled trigger inputs: • Fire Alarm disconnect (latching or non-latching) is individually
a) Normally open (NO) inputs . selectable for any or all of the eight (8) outputs .
b) Normally closed (NC) inputs . Fire Alarm disconnect input options:
c) Open collector sink inputs . a) Normally open [NO] or normally closed [NC] dry contact
d) Wet Input (5VDC - 24VDC) with 10K resistor input . Polarity reversal input from FACP signaling circuit .
e) Any combination of the above . • FACP output relay [NC] contact or provides 10k resistance with
• Eight (8) selectable 5VDC - 24VDC independently controlled [EOL JMP] intact .
outputs or Eight (8) iindependently controlled Form “C” relay outputs: • Red LEDs indicate outputs are triggered .
a) Fail-Safe and/or Fail-Secure power outputs . • Blue LED indicates FACP disconnect is triggered .
b) Form “C” Relays . Contacts rated @ 5A, dry output rated @ 3A . • Board Dimensions (W x L x H approximate):
c) Auxiliary power outputs (unswitched) . 8” x 4 .5” x 1 .25” (203 .2mm x 114 .3mm x 31 .8mm) .
d) Any combination of the above .
