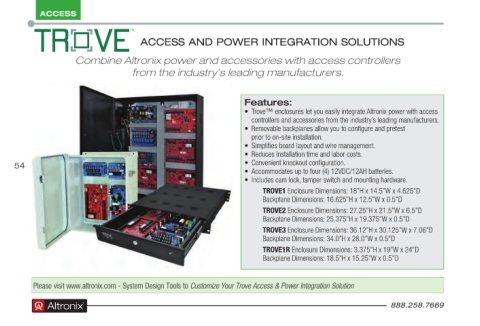

Page 54 - Altronix Product Guide

ACCESS

ACCESS AND POWER INTEGRATION SOLUTIONS

Combine Altronix power and accessories with access controllers
from the industry’s leading manufacturers.

Features:
• Trove™ enclosures let you easily integrate Altronix power with access
controllers and accessories from the industry’s leading manufacturers .
• Removable backplanes allow you to configure and pretest
prior to on-site installation .
• Simplifies board layout and wire management .
• Reduces installation time and labor costs .
54 • Convenient knockout configuration .
• Accommodates up to four (4) 12VDC/12AH batteries .
• Includes cam lock, tamper switch and mounting hardware .
TROVE1 Enclosure Dimensions: 18”H x 14 .5”W x 4 .625”D
Backplane Dimensions: 16 .625”H x 12 .5”W x 0 .5”D
TROVE2 Enclosure Dimensions: 27 .25”H x 21 .5”W x 6 .5”D
Backplane Dimensions: 25 .375”H x 19 .375”W x 0 .5”D
TROVE3 Enclosure Dimensions: 36 .12”H x 30 .125”W x 7 .06”D
Backplane Dimensions: 34 .0”H x 28 .0”W x 0 .5”D
TROVE1R Enclosure Dimensions: 3 .375”H x 19”W x 24”D
Backplane Dimensions: 18 .5”H x 15 .25”W x 0 .5”D

Please visit www .altronix .com - System Design Tools to Customize Your Trove Access & Power Integration Solution
