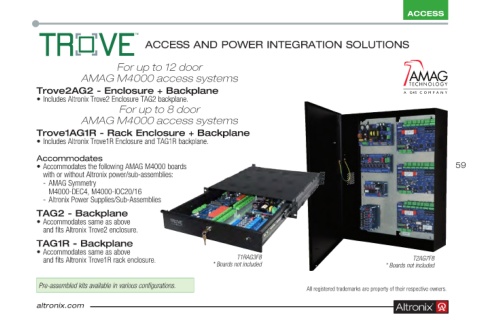

ACCESS

ACCESS AND POWER INTEGRATION SOLUTIONS

For up to 12 door
AMAG M4000 access systems
Trove2AG2 - Enclosure + Backplane
• Includes Altronix Trove2 Enclosure TAG2 backplane .
For up to 8 door
AMAG M4000 access systems
Trove1AG1R - Rack Enclosure + Backplane
• Includes Altronix Trove1R Enclosure and TAG1R backplane .
Accommodates
• Accommodates the following AMAG M4000 boards 59
with or without Altronix power/sub-assemblies:
- AMAG Symmetry
M4000-DEC4, M4000-IOC20/16
- Altronix Power Supplies/Sub-Assemblies
TAG2 - Backplane
• Accommodates same as above
and fits Altronix Trove2 enclosure .
TAG1R - Backplane
• Accommodates same as above
and fits Altronix Trove1R rack enclosure . T1RAG3F8 T2AG7F8
* Boards not included * Boards not included
Pre-assembled kits available in various configurations.
All registered trademarks are property of their respective owners .
