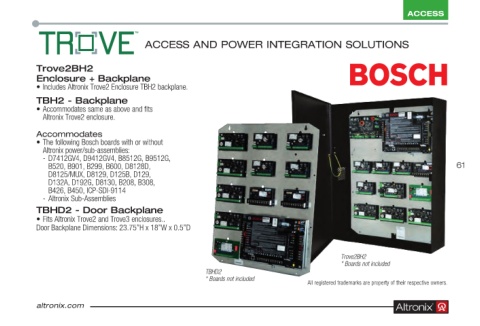

P. 61

ACCESS


                              ACCESS AND POWER INTEGRATION SOLUTIONS

        Trove2BH2
        Enclosure + Backplane
        • Includes Altronix Trove2 Enclosure TBH2 backplane .
        TBH2 - Backplane
        • Accommodates same as above and fits
          Altronix Trove2 enclosure .
        Accommodates
        • The following Bosch boards with or without
          Altronix power/sub-assemblies:
          - D7412GV4, D9412GV4, B8512G, B9512G,
            B520, B901, B299, B600, D8128D,                                                 61
            D8125/MUX, D8129, D125B, D129,
            D132A, D192G, D8130, B208, B308,
            B426, B450, ICP-SDI-9114
          - Altronix Sub-Assemblies
        TBHD2 - Door Backplane
        • Fits Altronix Trove2 and Trove3 enclosures . .
        Door Backplane Dimensions: 23 .75”H x 18”W x 0 .5”D

                                                                     Trove2BH2
                                                                     * Boards not included
                                          TBHD2
                                          * Boards not included
                                                              All registered trademarks are property of their respective owners .
