ACCESS
ACCESS

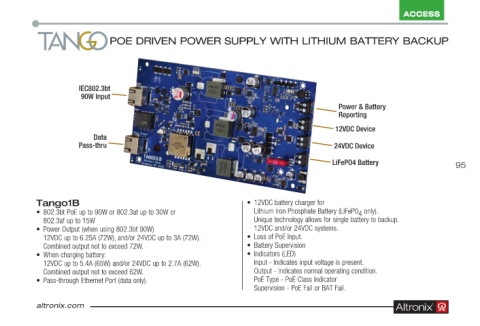

POE DRIVEN POWER SUPPLY WITH LITHIUM BATTERY BACKUP

IEC802.3bt
90W Input
Power & Battery
Reporting
12VDC Device
Data
Pass-thru 24VDC Device
LiFePO4 Battery 95

Tango1B • 12VDC battery charger for
• 802 .3bt PoE up to 90W or 802 .3at up to 30W or Lithium Iron Phosphate Battery (LiFeP0 only) .
4
802 .3af up to 15W Unique technology allows for single battery to backup .
• Power Output (when using 802 .3bt 90W) 12VDC and/or 24VDC systems .
12VDC up to 6 .25A (72W), and/or 24VDC up to 3A (72W) . • Loss of PoE Input .
Combined output not to exceed 72W . • Battery Supervision
• When charging battery: • Indicators (LED)
12VDC up to 5 .4A (65W) and/or 24VDC up to 2 .7A (62W) . Input - Indicates input voltage is present .
Combined output not to exceed 62W . Output - Indicates normal operating condition .
• Pass-through Ethernet Port (data only) . PoE Type - PoE Class Indicator
Supervision - PoE Fail or BAT Fail .
altronix.com ®
