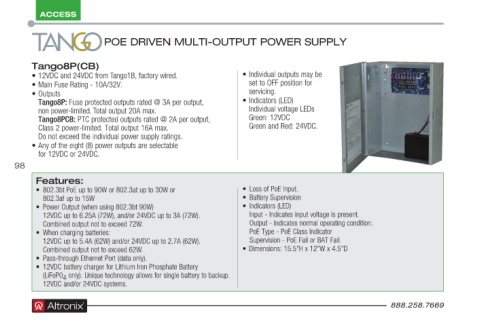

Page 98 - Altronix Product Guide

ACCESS

POE DRIVEN MULTI-OUTPUT POWER SUPPLY

Tango8P(CB)
• 12VDC and 24VDC from Tango1B, factory wired . • Individual outputs may be
• Main Fuse Rating - 10A/32V . set to OFF position for
• Outputs servicing .
Tango8P: Fuse protected outputs rated @ 3A per output, • Indicators (LED)
non power-limited . Total output 20A max . Individual voltage LEDs
Tango8PCB: PTC protected outputs rated @ 2A per output, Green: 12VDC
Class 2 power-limited . Total output 16A max . Green and Red: 24VDC .
Do not exceed the individual power supply ratings .
• Any of the eight (8) power outputs are selectable
for 12VDC or 24VDC .
98
Features:
• 802 .3bt PoE up to 90W or 802 .3at up to 30W or • Loss of PoE Input .
802 .3af up to 15W • Battery Supervision
• Power Output (when using 802 .3bt 90W) • Indicators (LED)
12VDC up to 6 .25A (72W), and/or 24VDC up to 3A (72W) . Input - Indicates input voltage is present .
Combined output not to exceed 72W . Output - Indicates normal operating condition .
• When charging batteries: PoE Type - PoE Class Indicator
12VDC up to 5 .4A (62W) and/or 24VDC up to 2 .7A (62W) . Supervision - PoE Fail or BAT Fail .
Combined output not to exceed 62W . • Dimensions: 15 .5”H x 12”W x 4 .5”D
• Pass-through Ethernet Port (data only) .
• 12VDC battery charger for Lithium Iron Phosphate Battery
(LiFeP0 only) . Unique technology allows for single battery to backup .
4
12VDC and/or 24VDC systems .
