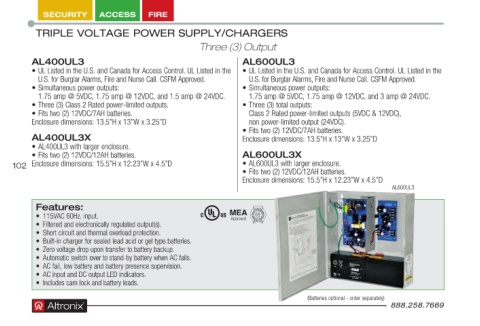

Page 102 - Altronix Product Guide

SECURITY ACCESS FIRE
TRIPLE VOLTAGE POWER SUPPLY/CHARGERS
Three (3) Output
AL4 00UL3 AL6 00UL3
• UL Listed in the U .S . and Canada for Access Control . UL Listed in the • UL Listed in the U .S . and Canada for Access Control . UL Listed in the
U .S . for Burglar Alarms, Fire and Nurse Call . CSFM Approved . U .S . for Burglar Alarms, Fire and Nurse Call . CSFM Approved .
• Simultaneous power outputs: • Simultaneous power outputs:
1 .75 amp @ 5VDC, 1 .75 amp @ 12VDC, and 1 .5 amp @ 24VDC . 1 .75 amp @ 5VDC, 1 .75 amp @ 12VDC, and 3 amp @ 24VDC .
• Three (3) Class 2 Rated power-limited outputs . • Three (3) total outputs:
• Fits two (2) 12VDC/7AH batteries . Class 2 Rated power-limited outputs (5VDC & 12VDC),
Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D non power-limited output (24VDC) .
• Fits two (2) 12VDC/7AH batteries .
AL400UL3X Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D
• AL400UL3 with larger enclosure .
• Fits two (2) 12VDC/12AH batteries . AL600UL3X
102 Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D • AL600UL3 with larger enclosure .
• Fits two (2) 12VDC/12AH batteries .
Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D
AL600UL3
Features:
• 115VAC 60Hz . input .
• Filtered and electronically regulated output(s) .
• Short circuit and thermal overload protection .
• Built-in charger for sealed lead acid or gel type batteries .
• Zero voltage drop upon transfer to battery backup .
• Automatic switch over to stand-by battery when AC fails .
• AC fail, low battery and battery presence supervision .
• AC input and DC output LED indicators .
• Includes cam lock and battery leads .
(Batteries optional - order separately)
888.258.7669
®
