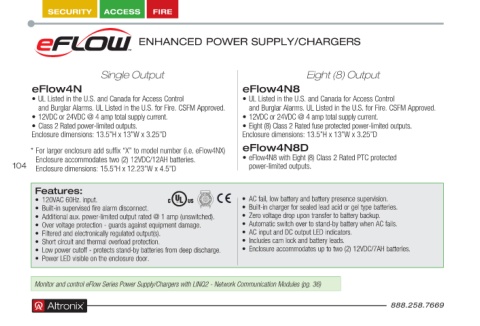

Page 104 - Altronix Product Guide

SECURITY ACCESS FIRE

ENHANCED POWER SUPPLY/CHARGERS

Single Output Eight (8) Output
eFlow4N eFlow4N8
• UL Listed in the U .S . and Canada for Access Control • UL Listed in the U .S . and Canada for Access Control
and Burglar Alarms . UL Listed in the U .S . for Fire . CSFM Approved . and Burglar Alarms . UL Listed in the U .S . for Fire . CSFM Approved .
• 12VDC or 24VDC @ 4 amp total supply current . • 12VDC or 24VDC @ 4 amp total supply current .
• Class 2 Rated power-limited outputs . • Eight (8) Class 2 Rated fuse protected power-limited outputs .
Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D
* For larger enclosure add suffix “X” to model number (i .e . eFlow4NX) eFlow4N8D
Enclosure accommodates two (2) 12VDC/12AH batteries . • eFlow4N8 with Eight (8) Class 2 Rated PTC protected
104 Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D power-limited outputs .

Features:
• 120VAC 60Hz . input . • AC fail, low battery and battery presence supervision .
• Built-in supervised fire alarm disconnect . • Built-in charger for sealed lead acid or gel type batteries .
• Additional aux . power-limited output rated @ 1 amp (unswitched) . • Zero voltage drop upon transfer to battery backup .
• Over voltage protection - guards against equipment damage . • Automatic switch over to stand-by battery when AC fails .
• Filtered and electronically regulated output(s) . • AC input and DC output LED indicators .
• Short circuit and thermal overload protection . • Includes cam lock and battery leads .
• Low power cutoff - protects stand-by batteries from deep discharge . • Enclosure accommodates up to two (2) 12VDC/7AH batteries .
• Power LED visible on the enclosure door .

Monitor and control eFlow Series Power Supply/Chargers with LINQ2 - Network Communication Modules (pg. 36)
888.258.7669
®
