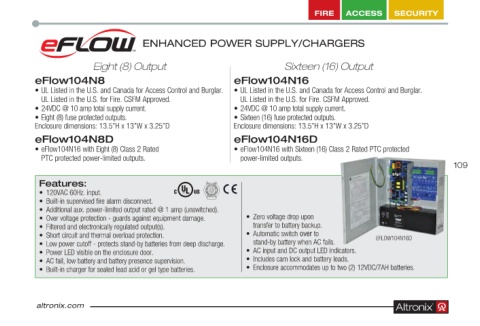

Page 109 - Altronix Product Guide

FIRE ACCESS SECURITY

ENHANCED POWER SUPPLY/CHARGERS

Eight (8) Output Sixteen (16) Output
eFlow104N8 eFlow104N16
• UL Listed in the U .S . and Canada for Access Control and Burglar . • UL Listed in the U .S . and Canada for Access Control and Burglar .
UL Listed in the U .S . for Fire . CSFM Approved . UL Listed in the U .S . for Fire . CSFM Approved .
• 24VDC @ 10 amp total supply current . • 24VDC @ 10 amp total supply current .
• Eight (8) fuse protected outputs . • Sixteen (16) fuse protected outputs .
Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D
eFlow104N8D eFlow104N16D
• eFlow104N16 with Eight (8) Class 2 Rated • eFlow104N16 with Sixteen (16) Class 2 Rated PTC protected
PTC protected power-limited outputs . power-limited outputs .
109
Features:
• 120VAC 60Hz . input .
• Built-in supervised fire alarm disconnect .
• Additional aux . power-limited output rated @ 1 amp (unswitched) .
• Over voltage protection - guards against equipment damage . • Zero voltage drop upon
• Filtered and electronically regulated output(s) . transfer to battery backup .
• Short circuit and thermal overload protection . • Automatic switch over to EFLOW104N16D
• Low power cutoff - protects stand-by batteries from deep discharge . stand-by battery when AC fails .
• Power LED visible on the enclosure door . • AC input and DC output LED indicators .
• AC fail, low battery and battery presence supervision . • Includes cam lock and battery leads .
• Built-in charger for sealed lead acid or gel type batteries . • Enclosure accommodates up to two (2) 12VDC/7AH batteries .
