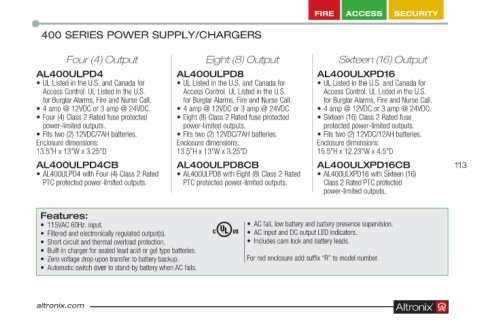

Page 113 - Altronix Product Guide

FIRE ACCESS SECURITY

400 SERIES POWER SUPPLY/CHARGERS

Four (4) Output Eight (8) Output Sixteen (16) Output
AL4 00ULPD4 AL4 00ULPD8 AL4 00ULXPD16
• UL Listed in the U .S . and Canada for • UL Listed in the U .S . and Canada for • UL Listed in the U .S . and Canada for
Access Control . UL Listed in the U .S . Access Control . UL Listed in the U .S . Access Control . UL Listed in the U .S .
for Burglar Alarms, Fire and Nurse Call . for Burglar Alarms, Fire and Nurse Call . for Burglar Alarms, Fire and Nurse Call .
• 4 amp @ 12VDC or 3 amp @ 24VDC . • 4 amp @ 12VDC or 3 amp @ 24VDC . • 4 amp @ 12VDC or 3 amp @ 24VDC .
• Four (4) Class 2 Rated fuse protected • Eight (8) Class 2 Rated fuse protected • Sixteen (16) Class 2 Rated fuse
power-limited outputs . power-limited outputs . protected power-limited outputs .
• Fits two (2) 12VDC/7AH batteries . • Fits two (2) 12VDC/7AH batteries . • Fits two (2) 12VDC/12AH batteries .
Enclosure dimensions: Enclosure dimensions: Enclosure dimensions:
13 .5”H x 13”W x 3 .25”D 13 .5”H x 13”W x 3 .25”D 15 .5”H x 12 .23”W x 4 .5”D
AL4 00ULPD4CB AL4 00ULPD8CB AL4 00ULXPD16CB 113
• AL400ULPD4 with Four (4) Class 2 Rated • AL400ULPD8 with Eight (8) Class 2 Rated • AL400ULXPD16 with Sixteen (16)
PTC protected power-limited outputs . PTC protected power-limited outputs . Class 2 Rated PTC protected
power-limited outputs .

Features:
• 115VAC 60Hz . input . • AC fail, low battery and battery presence supervision .
• Filtered and electronically regulated output(s) . • AC input and DC output LED indicators .
• Short circuit and thermal overload protection . • Includes cam lock and battery leads .
• Built-in charger for sealed lead acid or gel type batteries .
• Zero voltage drop upon transfer to battery backup . For red enclosure add suffix “R” to model number .
• Automatic switch over to stand-by battery when AC fails .
