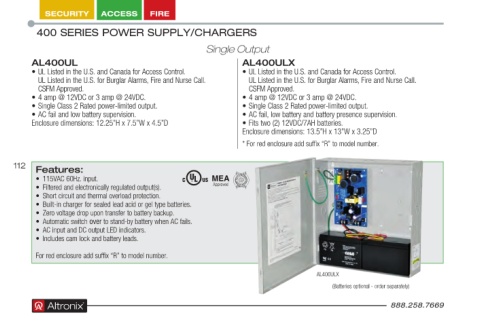

Page 112 - Altronix Product Guide

SECURITY ACCESS FIRE
400 SERIES POWER SUPPLY/CHARGERS
Single Output
AL4 00UL AL4 00ULX
• UL Listed in the U .S . and Canada for Access Control . • UL Listed in the U .S . and Canada for Access Control .
UL Listed in the U .S . for Burglar Alarms, Fire and Nurse Call . UL Listed in the U .S . for Burglar Alarms, Fire and Nurse Call .
CSFM Approved . CSFM Approved .
• 4 amp @ 12VDC or 3 amp @ 24VDC . • 4 amp @ 12VDC or 3 amp @ 24VDC .
• Single Class 2 Rated power-limited output . • Single Class 2 Rated power-limited output .
• AC fail and low battery supervision . • AC fail, low battery and battery presence supervision .
Enclosure dimensions: 12 .25”H x 7 .5”W x 4 .5”D • Fits two (2) 12VDC/7AH batteries .
Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D
* For red enclosure add suffix “R” to model number .

112
Features:
• 115VAC 60Hz . input .
• Filtered and electronically regulated output(s) .
• Short circuit and thermal overload protection .
• Built-in charger for sealed lead acid or gel type batteries .
• Zero voltage drop upon transfer to battery backup .
• Automatic switch over to stand-by battery when AC fails .
• AC input and DC output LED indicators .
• Includes cam lock and battery leads .
For red enclosure add suffix “R” to model number .

AL400ULX
(Batteries optional - order separately)
