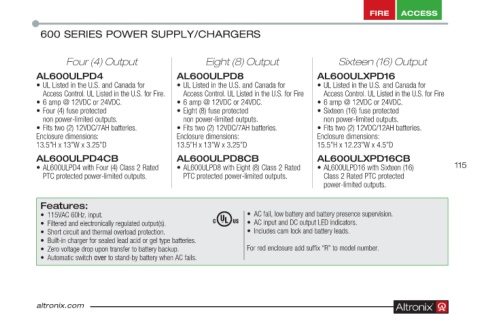

Page 115 - Altronix Product Guide

FIRE ACCESS

600 SERIES POWER SUPPLY/CHARGERS

Four (4) Output Eight (8) Output Sixteen (16) Output
AL6 00ULPD4 AL6 00ULPD8 AL6 00ULXPD16
• UL Listed in the U .S . and Canada for • UL Listed in the U .S . and Canada for • UL Listed in the U .S . and Canada for
Access Control . UL Listed in the U .S . for Fire . Access Control . UL Listed in the U .S . for Fire Access Control . UL Listed in the U .S . for Fire
• 6 amp @ 12VDC or 24VDC . • 6 amp @ 12VDC or 24VDC . • 6 amp @ 12VDC or 24VDC .
• Four (4) fuse protected • Eight (8) fuse protected • Sixteen (16) fuse protected
non power-limited outputs . non power-limited outputs . non power-limited outputs .
• Fits two (2) 12VDC/7AH batteries . • Fits two (2) 12VDC/7AH batteries . • Fits two (2) 12VDC/12AH batteries .
Enclosure dimensions: Enclosure dimensions: Enclosure dimensions:
13 .5”H x 13”W x 3 .25”D 13 .5”H x 13”W x 3 .25”D 15 .5”H x 12 .23”W x 4 .5”D
AL6 00ULPD4CB AL600ULPD8CB AL6 00ULXPD16CB
• AL600ULPD4 with Four (4) Class 2 Rated • AL600ULPD8 with Eight (8) Class 2 Rated • AL600ULPD16 with Sixteen (16) 115
PTC protected power-limited outputs . PTC protected power-limited outputs . Class 2 Rated PTC protected
power-limited outputs .

Features:
• 115VAC 60Hz . input . • AC fail, low battery and battery presence supervision .
• Filtered and electronically regulated output(s) . • AC input and DC output LED indicators .
• Short circuit and thermal overload protection . • Includes cam lock and battery leads .
• Built-in charger for sealed lead acid or gel type batteries .
• Zero voltage drop upon transfer to battery backup . For red enclosure add suffix “R” to model number .
• Automatic switch over to stand-by battery when AC fails .
