ACCESS FIRE

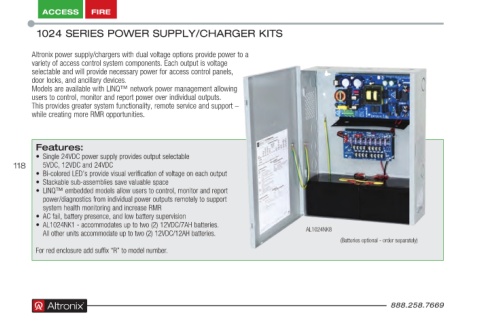

1024 SERIES POWER SUPPLY/CHARGER KITS

Altronix power supply/chargers with dual voltage options provide power to a
variety of access control system components . Each output is voltage
selectable and will provide necessary power for access control panels,
door locks, and ancillary devices .
Models are available with LINQ™ network power management allowing
users to control, monitor and report power over individual outputs .
This provides greater system functionality, remote service and support –
while creating more RMR opportunities .

Features:
• Single 24VDC power supply provides output selectable
118 5VDC, 12VDC and 24VDC
• Bi-colored LED’s provide visual verification of voltage on each output
• Stackable sub-assemblies save valuable space
• LINQ™ embedded models allow users to control, monitor and report
power/diagnostics from individual power outputs remotely to support
system health monitoring and increase RMR
• AC fail, battery presence, and low battery supervision
• AL1024NK1 - accommodates up to two (2) 12VDC/7AH batteries . AL1024NK8
All other units accommodate up to two (2) 12VDC/12AH batteries .
(Batteries optional - order separately)
For red enclosure add suffix “R” to model number .
