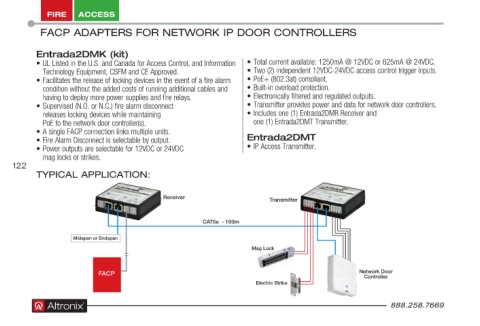

Page 122 - Altronix Product Guide

FIRE ACCESS
FACP ADAPTERS FOR NETWORK IP DOOR CONTROLLERS

Entrada2DMK (kit)
• UL Listed in the U .S . and Canada for Access Control, and Information • Total current available: 1250mA @ 12VDC or 625mA @ 24VDC .
Technology Equipment, CSFM and CE Approved . • Two (2) independent 12VDC-24VDC access control trigger inputs .
• Facilitates the release of locking devices in the event of a fire alarm • PoE+ (802 .3at) compliant .
condition without the added costs of running additional cables and • Built-in overload protection .
having to deploy more power supplies and fire relays . • Electronically filtered and regulated outputs .
• Supervised (N .O . or N .C .) fire alarm disconnect • Transmitter provides power and data for network door controllers .
releases locking devices while maintaining • Includes one (1) Entrada2DMR Receiver and
PoE to the network door controller(s) . one (1) Entrada2DMT Transmitter .
• A single FACP connection links multiple units .
• Fire Alarm Disconnect is selectable by output . Entrada2DMT
• Power outputs are selectable for 12VDC or 24VDC • IP Access Transmitter .
mag locks or strikes .
122
TYPICAL APPLICATION:

Receiver Transmitter

CAT5e - 100m
Midspan or Endspan
Mag Lock

FACP Network Door
Controller
Electric Strike
