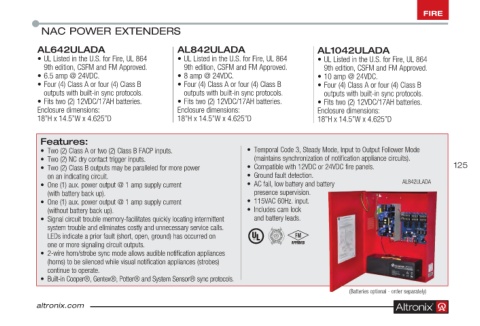

Page 125 - Altronix Product Guide

FIRE
NAC POWER EXTENDERS

AL642ULADA AL842ULADA AL1042ULADA
• UL Listed in the U .S . for Fire, UL 864 • UL Listed in the U .S . for Fire, UL 864 • UL Listed in the U .S . for Fire, UL 864
9th edition, CSFM and FM Approved . 9th edition, CSFM and FM Approved . 9th edition, CSFM and FM Approved .
• 6 .5 amp @ 24VDC . • 8 amp @ 24VDC . • 10 amp @ 24VDC .
• Four (4) Class A or four (4) Class B • Four (4) Class A or four (4) Class B • Four (4) Class A or four (4) Class B
outputs with built-in sync protocols . outputs with built-in sync protocols . outputs with built-in sync protocols .
• Fits two (2) 12VDC/17AH batteries . • Fits two (2) 12VDC/17AH batteries . • Fits two (2) 12VDC/17AH batteries .
Enclosure dimensions: Enclosure dimensions: Enclosure dimensions:
18”H x 14 .5”W x 4 .625”D 18”H x 14 .5”W x 4 .625”D 18”H x 14 .5”W x 4 .625”D

Features:
• Two (2) Class A or two (2) Class B FACP inputs . • Temporal Code 3, Steady Mode, Input to Output Follower Mode
• Two (2) NC dry contact trigger inputs . (maintains synchronization of notification appliance circuits) .
• Two (2) Class B outputs may be paralleled for more power • Compatible with 12VDC or 24VDC fire panels . 125
on an indicating circuit . • Ground fault detection .
• One (1) aux . power output @ 1 amp supply current • AC fail, low battery and battery AL842ULADA
(with battery back up) . presence supervision .
• One (1) aux . power output @ 1 amp supply current • 115VAC 60Hz . input .
(without battery back up) . • Includes cam lock
• Signal circuit trouble memory-facilitates quickly locating intermittent and battery leads .
system trouble and eliminates costly and unnecessary service calls .
LEDs indicate a prior fault (short, open, ground) has occurred on
one or more signaling circuit outputs .
• 2-wire horn/strobe sync mode allows audible notification appliances
(horns) to be silenced while visual notification appliances (strobes)
continue to operate .
• Built-in Cooper®, Gentex®, Potter® and System Sensor® sync protocols .
(Batteries optional - order separately)
