FIRE ACCESS

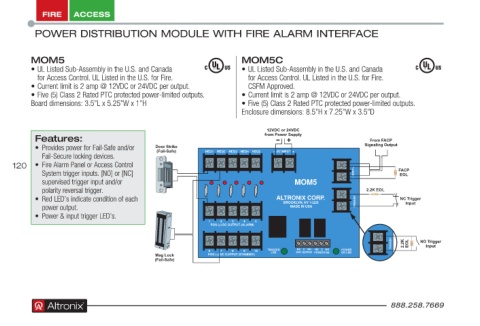

POWER DISTRIBUTION MODULE WITH FIRE ALARM INTERFACE

MOM5 MOM5C
• UL Listed Sub-Assembly in the U .S . and Canada • UL Listed Sub-Assembly in the U .S . and Canada
for Access Control . UL Listed in the U .S . for Fire . for Access Control . UL Listed in the U .S . for Fire .
• Current limit is 2 amp @ 12VDC or 24VDC per output . CSFM Approved .
• Five (5) Class 2 Rated PTC protected power-limited outputs . • Current limit is 2 amp @ 12VDC or 24VDC per output .
Board dimensions: 3 .5”L x 5 .25”W x 1”H • Five (5) Class 2 Rated PTC protected power-limited outputs .
Enclosure dimensions: 8 .5”H x 7 .25”W x 3 .5”D

12VDC or 24VDC
Features: from Power Supply From FACP
-- +
• Provides power for Fail-Safe and/or Door Strike Signaling Output
(Fail-Safe)
Fail-Secure locking devices .
120 • Fire Alarm Panel or Access Control FACP
System trigger inputs . [NO] or [NC] EOL
supervised trigger input and/or
polarity reversal trigger . 2.2K EOL
• Red LED’s indicate condition of each NC Trigger
Input
power output .
• Power & input trigger LED’s .
2.2K EOL NO Trigger
Input
Mag Lock
(Fail-Safe)
