FIRE ACCESS

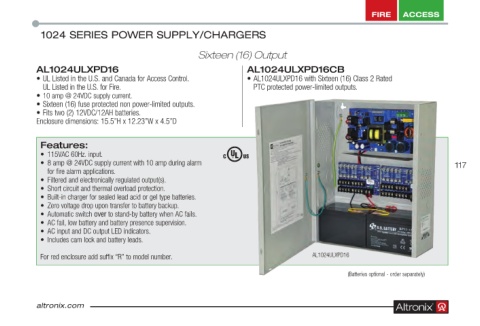

1024 SERIES POWER SUPPLY/CHARGERS
Sixteen (16) Output
AL1 024ULXPD16 AL1 024ULXPD16CB
• UL Listed in the U .S . and Canada for Access Control . • AL1024ULXPD16 with Sixteen (16) Class 2 Rated
UL Listed in the U .S . for Fire . PTC protected power-limited outputs .
• 10 amp @ 24VDC supply current .
• Sixteen (16) fuse protected non power-limited outputs .
• Fits two (2) 12VDC/12AH batteries .
Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D

Features:
• 115VAC 60Hz . input .
• 8 amp @ 24VDC supply current with 10 amp during alarm 117
for fire alarm applications .
• Filtered and electronically regulated output(s) .
• Short circuit and thermal overload protection .
• Built-in charger for sealed lead acid or gel type batteries .
• Zero voltage drop upon transfer to battery backup .
• Automatic switch over to stand-by battery when AC fails .
• AC fail, low battery and battery presence supervision .
• AC input and DC output LED indicators .
• Includes cam lock and battery leads .
For red enclosure add suffix “R” to model number . AL1024ULXPD16

(Batteries optional - order separately)
