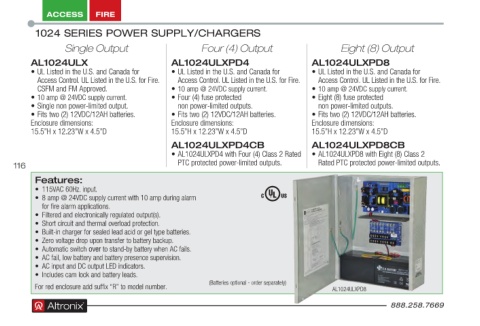

Page 116 - Altronix Product Guide

ACCESS FIRE
1024 SERIES POWER SUPPLY/CHARGERS
Single Output Four (4) Output Eight (8) Output
AL1 024ULX AL1 024ULXPD4 AL1 024ULXPD8
• UL Listed in the U .S . and Canada for • UL Listed in the U .S . and Canada for • UL Listed in the U .S . and Canada for
Access Control . UL Listed in the U .S . for Fire . Access Control . UL Listed in the U .S . for Fire . Access Control . UL Listed in the U .S . for Fire .
CSFM and FM Approved . • 10 amp @ 24VDC supply current . • 10 amp @ 24VDC supply current .
• 10 amp @ 24VDC supply current . • Four (4) fuse protected • Eight (8) fuse protected
• Single non power-limited output . non power-limited outputs . non power-limited outputs .
• Fits two (2) 12VDC/12AH batteries . • Fits two (2) 12VDC/12AH batteries . • Fits two (2) 12VDC/12AH batteries .
Enclosure dimensions: Enclosure dimensions: Enclosure dimensions:
15 .5”H x 12 .23”W x 4 .5”D 15 .5”H x 12 .23”W x 4 .5”D 15 .5”H x 12 .23”W x 4 .5”D
AL1 024ULXPD4CB AL1 024ULXPD8CB
• AL1024ULXPD4 with Four (4) Class 2 Rated • AL1024ULXPD8 with Eight (8) Class 2
116 PTC protected power-limited outputs . Rated PTC protected power-limited outputs .
Features:
• 115VAC 60Hz . input .
• 8 amp @ 24VDC supply current with 10 amp during alarm
for fire alarm applications .
• Filtered and electronically regulated output(s) .
• Short circuit and thermal overload protection .
• Built-in charger for sealed lead acid or gel type batteries .
• Zero voltage drop upon transfer to battery backup .
• Automatic switch over to stand-by battery when AC fails .
• AC fail, low battery and battery presence supervision .
• AC input and DC output LED indicators .
• Includes cam lock and battery leads .
(Batteries optional - order separately)
For red enclosure add suffix “R” to model number . AL1024ULXPD8
888.258.7669
®
