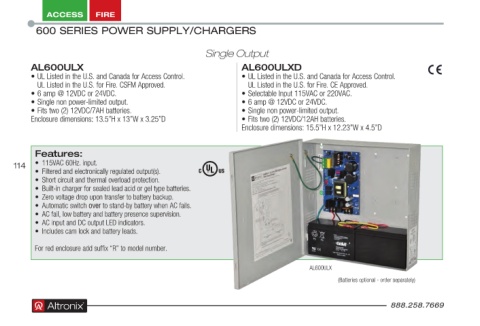

Page 114 - Altronix Product Guide

ACCESS FIRE
600 SERIES POWER SUPPLY/CHARGERS

Single Output
AL6 00ULX AL6 00ULXD
• UL Listed in the U .S . and Canada for Access Control . • UL Listed in the U .S . and Canada for Access Control .
UL Listed in the U .S . for Fire . CSFM Approved . UL Listed in the U .S . for Fire . CE Approved .
• 6 amp @ 12VDC or 24VDC . • Selectable Input 115VAC or 220VAC .
• Single non power-limited output . • 6 amp @ 12VDC or 24VDC .
• Fits two (2) 12VDC/7AH batteries . • Single non power-limited output .
Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D • Fits two (2) 12VDC/12AH batteries .
Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D

Features:
114 • 115VAC 60Hz . input .
• Filtered and electronically regulated output(s) .
• Short circuit and thermal overload protection .
• Built-in charger for sealed lead acid or gel type batteries .
• Zero voltage drop upon transfer to battery backup .
• Automatic switch over to stand-by battery when AC fails .
• AC fail, low battery and battery presence supervision .
• AC input and DC output LED indicators .
• Includes cam lock and battery leads .
For red enclosure add suffix “R” to model number .

AL600ULX
(Batteries optional - order separately)
