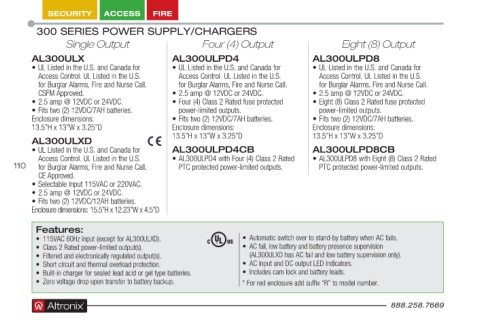

Page 110 - Altronix Product Guide

SECURITY ACCESS FIRE
300 SERIES POWER SUPPLY/CHARGERS
Single Output Four (4) Output Eight (8) Output
AL300ULX AL300ULPD4 AL300ULPD8
• UL Listed in the U .S . and Canada for • UL Listed in the U .S . and Canada for • UL Listed in the U .S . and Canada for
Access Control . UL Listed in the U .S . Access Control . UL Listed in the U .S . Access Control . UL Listed in the U .S .
for Burglar Alarms, Fire and Nurse Call . for Burglar Alarms, Fire and Nurse Call . for Burglar Alarms, Fire and Nurse Call .
CSFM Approved . • 2 .5 amp @ 12VDC or 24VDC . • 2 .5 amp @ 12VDC or 24VDC .
• 2 .5 amp @ 12VDC or 24VDC . • Four (4) Class 2 Rated fuse protected • Eight (8) Class 2 Rated fuse protected
• Fits two (2) 12VDC/7AH batteries . power-limited outputs . power-limited outputs .
Enclosure dimensions: • Fits two (2) 12VDC/7AH batteries . • Fits two (2) 12VDC/7AH batteries .
13 .5”H x 13”W x 3 .25”D Enclosure dimensions: Enclosure dimensions:
AL300ULXD 13 .5”H x 13”W x 3 .25”D 13 .5”H x 13”W x 3 .25” D
• UL Listed in the U .S . and Canada for AL300ULPD4CB AL300ULPD8CB
Access Control . UL Listed in the U .S . • AL300ULPD4 with Four (4) Class 2 Rated • AL300ULPD8 with Eight (8) Class 2 Rated
110 for Burglar Alarms, Fire and Nurse Call . PTC protected power-limited outputs . PTC protected power-limited outputs .
CE Approved .
• Selectable Input 115VAC or 220VAC .
• 2 .5 amp @ 12VDC or 24VDC .
• Fits two (2) 12VDC/12AH batteries .
Enclosure dimensions: 15 .5”H x 12 .23”W x 4 .5”D
Features:
• 115VAC 60Hz input (except for AL300ULXD) . • Automatic switch over to stand-by battery when AC fails .
• Class 2 Rated power-limited output(s) . • AC fail, low battery and battery presence supervision
• Filtered and electronically regulated output(s) . (AL300ULXD has AC fail and low battery supervision only) .
• Short circuit and thermal overload protection . • AC input and DC output LED indicators .
• Built-in charger for sealed lead acid or gel type batteries . • Includes cam lock and battery leads .
• Zero voltage drop upon transfer to battery backup . * For red enclosure add suffix “R” to model number .
