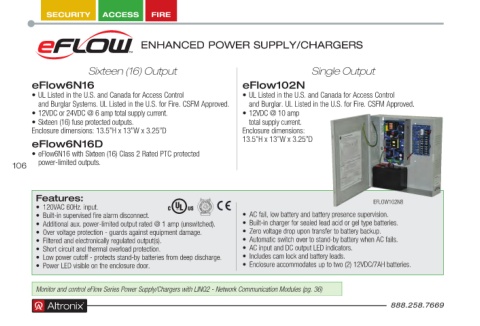

Page 106 - Altronix Product Guide

SECURITY ACCESS FIRE

ENHANCED POWER SUPPLY/CHARGERS

Sixteen (16) Output Single Output
eFlow6N16 eFlow102N
• UL Listed in the U .S . and Canada for Access Control • UL Listed in the U .S . and Canada for Access Control
and Burglar Systems . UL Listed in the U .S . for Fire . CSFM Approved . and Burglar . UL Listed in the U .S . for Fire . CSFM Approved .
• 12VDC or 24VDC @ 6 amp total supply current . • 12VDC @ 10 amp
• Sixteen (16) fuse protected outputs . total supply current .
Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D Enclosure dimensions:
eFlow6N16D 13 .5”H x 13”W x 3 .25”D
• eFlow6N16 with Sixteen (16) Class 2 Rated PTC protected
106 power-limited outputs .

Features: EFLOW102N8
• 120VAC 60Hz . input .
• Built-in supervised fire alarm disconnect . • AC fail, low battery and battery presence supervision .
• Additional aux . power-limited output rated @ 1 amp (unswitched) . • Built-in charger for sealed lead acid or gel type batteries .
• Over voltage protection - guards against equipment damage . • Zero voltage drop upon transfer to battery backup .
• Filtered and electronically regulated output(s) . • Automatic switch over to stand-by battery when AC fails .
• Short circuit and thermal overload protection . • AC input and DC output LED indicators .
• Low power cutoff - protects stand-by batteries from deep discharge . • Includes cam lock and battery leads .
• Power LED visible on the enclosure door . • Enclosure accommodates up to two (2) 12VDC/7AH batteries .

Monitor and control eFlow Series Power Supply/Chargers with LINQ2 - Network Communication Modules (pg. 36)
