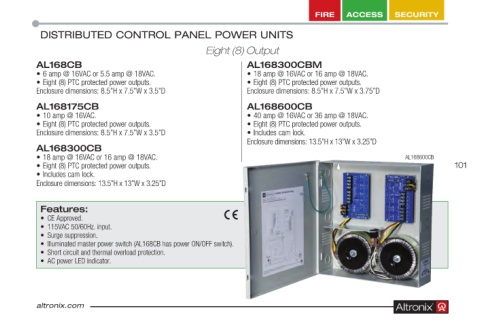

Page 101 - Altronix Product Guide
P. 101
FIRE ACCESS SECURITY
DISTRIBUTED CONTROL PANEL POWER UNITS
Eight (8) Output
AL168CB AL168300CBM
• 6 amp @ 16VAC or 5 .5 amp @ 18VAC . • 18 amp @ 16VAC or 16 amp @ 18VAC .
• Eight (8) PTC protected power outputs . • Eight (8) PTC protected power outputs .
Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .5”D Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .75”D
AL168175CB AL168600CB
• 10 amp @ 16VAC . • 40 amp @ 16VAC or 36 amp @ 18VAC .
• Eight (8) PTC protected power outputs . • Eight (8) PTC protected power outputs .
Enclosure dimensions: 8 .5”H x 7 .5”W x 3 .5”D • Includes cam lock .
Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D
AL168300CB
• 18 amp @ 16VAC or 16 amp @ 18VAC . AL168600CB
• Eight (8) PTC protected power outputs . 101
• Includes cam lock .
Enclosure dimensions: 13 .5”H x 13”W x 3 .25”D
Features:
• CE Approved .
• 115VAC 50/60Hz . input .
• Surge suppression .
• Illuminated master power switch (AL168CB has power ON/OFF switch) .
• Short circuit and thermal overload protection .
• AC power LED indicator .
altronix.com ®
