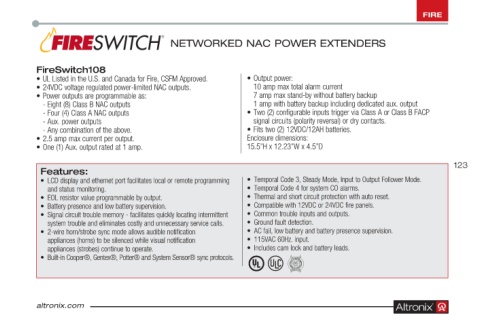

Page 123 - Altronix Product Guide

FIRE

NETWORKED NAC POWER EXTENDERS

FireSwitch108
• UL Listed in the U .S . and Canada for Fire, CSFM Approved . • Output power:
• 24VDC voltage regulated power-limited NAC outputs . 10 amp max total alarm current
• Power outputs are programmable as: 7 amp max stand-by without battery backup
- Eight (8) Class B NAC outputs 1 amp with battery backup including dedicated aux . output
- Four (4) Class A NAC outputs • Two (2) configurable inputs trigger via Class A or Class B FACP
- Aux . power outputs signal circuits (polarity reversal) or dry contacts .
- Any combination of the above . • Fits two (2) 12VDC/12AH batteries .
• 2 .5 amp max current per output . Enclosure dimensions:
• One (1) Aux . output rated at 1 amp . 15 .5”H x 12 .23”W x 4 .5”D
123
Features:
• LCD display and ethernet port facilitates local or remote programming • Temporal Code 3, Steady Mode, Input to Output Follower Mode .
and status monitoring . • Temporal Code 4 for system CO alarms .
• EOL resistor value programmable by output . • Thermal and short circuit protection with auto reset .
• Battery presence and low battery supervision . • Compatible with 12VDC or 24VDC fire panels .
• Signal circuit trouble memory - facilitates quickly locating intermittent • Common trouble inputs and outputs .
system trouble and eliminates costly and unnecessary service calls . • Ground fault detection .
• 2-wire horn/strobe sync mode allows audible notification • AC fail, low battery and battery presence supervision .
appliances (horns) to be silenced while visual notification • 115VAC 60Hz . input .
appliances (strobes) continue to operate . • Includes cam lock and battery leads .
• Built-in Cooper®, Gentex®, Potter® and System Sensor® sync protocols .
